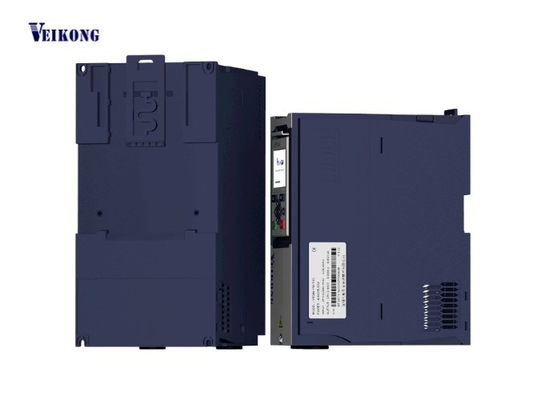

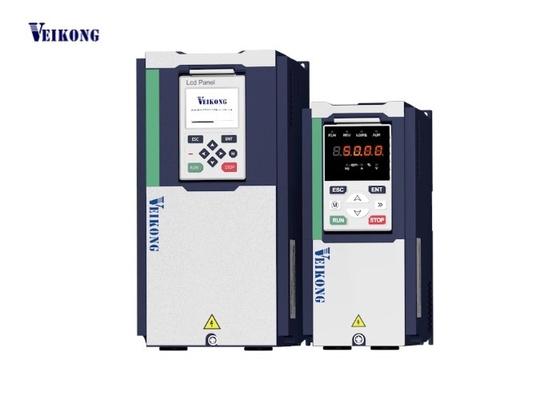

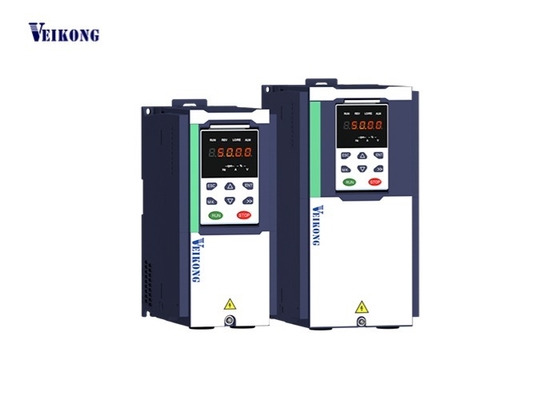

VEIKONG VFD500 Inverter for Motor Speed Control with Built-in PID and PLC Capabilities
  • VEIKONG VFD500 Inverter for Motor Speed Control with Built-in PID and PLC Capabilities
  • VEIKONG VFD500 Inverter for Motor Speed Control with Built-in PID and PLC Capabilities
  • VEIKONG VFD500 Inverter for Motor Speed Control with Built-in PID and PLC Capabilities
Place of Origin China
Nazwa handlowa VEIKONG
Orzecznictwo CE IEC ISO9001
Model Number VFD500
Minimum Order Quantity 1
Cena negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union,T/T,L/C,D/A,D/P,PayPal
Supply Ability 15000pcs per Month
Szczegóły Produktu
Product Name VEIKONG VFD500 Inverter for Motor Speed Control with Built-in PID and PLC Capabilities Voltage 380V
Output 3 Phase Application Textile,packaging,extruder,fans,pumps,CNC,hoist And Crane,etc
Control Mode VF,SVC,VC,torque Control Starting Torque 0.25HZ/150% SVC ,0HZ/180%FVC
Highlight Veikong VFD 500, 45kw Variable Frequency Inverters, Veikong 3 Phase Ac Drive
opis produktu

VEIKONG VFD500 Inverter for Motor Speed Control with Built-in PID and PLC Capabilities


Product Name Inverter 30KW 37KW 45KW 55KW 440V 480V Current Depend On Model
Voltage 380V-480V Frequency 50HZ-60HZ
Weight Depend On Model Warranty 24 Months
Brand VEIKONG Original China
Color Dark Blue And White Protection level IP20
GPRS Support Remote Control

Highlight

STO(Safe Torque off)function

TCP protocol

Fire mode in urgent situations

Rich communication card for options


PID Function Variable Frequency Inverters 30KW 37KW 45KW 55KW 440V 480V


VEIKONG Variable Speed Drive Inverter 30KW 37KW 45KW 55KW 440V 480V


Product Feature

1. VFD500 product feautures

1)Use IGBT module design instead of single tube igbt.
2)Support LED, optional dual display keypad, optional LCD keypad.
3)open loop and close loop control
4)optional STO function.
5)Fire mode function.
6)Modbus RTU, optional Modbus TCP, Can-Open, Profinet , Ethercat communications.
7)high frequency up to 3000Hz.
8)PC TOOL software.
9)Energy-savinig function
10)OEM / Customized solution.



VFD500 series frequency inverter is a powerful high-performance current vector inverter, which can realize the
control of the asynchronous motor, V/F control mode, one machine with multiple functions, can realize
multiple frequency switching, and can be used for textile, Drives for automated production equipment
such as papermaking, wIre drawing, machine tools, packaging, and food.

VEIKONG VFD500 Inverter for Motor Speed Control with Built-in PID and PLC Capabilities 0

Product Specification


Item Specification
Input Input Voltage

1phase/3phase 220V:200V～240V

3 phase 380V-480V:380V～480V
Allowed Voltage fluctuation range -15%～10%
Input frequency 50Hz / 60Hz,fluctuation less than 5%
Output Output Voltage 3phase:0～input voltage
Overload capacity

General purpose application:60S for 150% of the rated current

Light load application:60S for 120% of the rated current
Control Control mode

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)
Operating mode Speed control,Torque control(SVC and VC)
Speed range

1:100 (V/f)

1:200( SVC)

1:1000 (VC)
Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

±0.02% (VC)
Speed response

5Hz(V/f)

20Hz(SVC)

50Hz(VC)
Frequency range

0.00～600.00Hz(V/f)

0.00～200.00Hz(SVC)

0.00～400.00Hz(VC)
Input frequency resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.1%
Startup torque

150%/0.5Hz(V/f)

180%/0.25Hz(SVC)

200%/0Hz(VC)
Torque control accuracy

SVC:within 5Hz10%,above 5Hz5%

VC:3.0%
V/f curve

V / f curve type: straight line, multi point, power function, V / f separation;

Torque boost support: Automatic torque boost (factory setting), manual torque boost
Frequency giving ramp

Support linear and S curve acceleration and deceleration;

4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s
DC bus voltage control

Over-voltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;


Under-voltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure


VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip;

Vdc Min control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump under-voltage fault
Carrier frequency 1kHz～12kHz(Varies depending on the type)
Startup method Direct start (can be superimposed DC brake); speed tracking start
Stop method Deceleration stop (can be superimposed DC braking); free to stop
Main control function Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN
Function Keypad LED Digital keyboard and LCD keypad(option)
Communication

Standard:

MODBUS communication

CAN OPEN AND PROFINET( IN DEVELOPMENT)
PG card Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card
Input terminal

Standard:

5 digital input terminals, one of which supports high-speed pulse input up to 50kHz;

2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input;

Option card:

4 digital input terminals

2 analog input terminals.support-10V-+10V voltage input
Output terminal

standard:

1 digital output terminal;

1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output;

1 relay output terminal(second relay is an option )

2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output;

Option card: 4 digital output terminals
Protection Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function
Environment Installation location Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
Altitude 0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m
Ambient temperature -10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6 g)
Storage temperature -20°C ~ +60°C
Others Installation Wall-mounted, floor-controlled cabinet, transmural
Protection level IP20
cooling method Forced air cooling
EMC CE ROHS

Internal EMC filter

Complies with EN61800-3

Category C3

3rd Environment
